Description

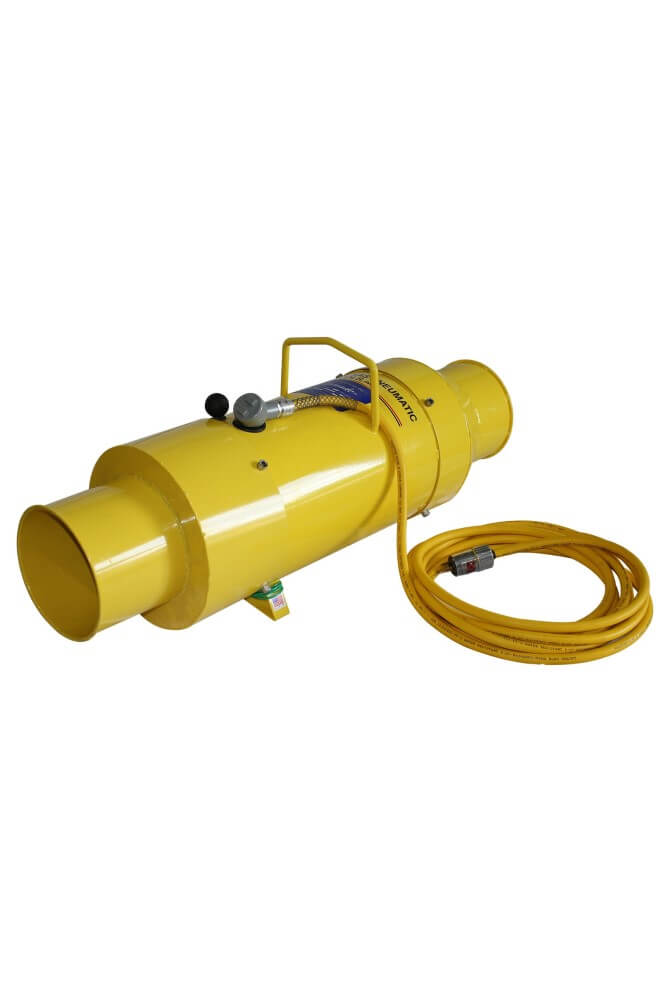

- 8" Tornado Blower with Explosion Proof, 1 hp, 230 volt, 50/60 hz electric motor.
- Free Flow CFM 2,090 @ 60 hz, 1,480 @ 50 hz.
Tornado 8, 12 & 16 EXP units are supplied with explosion proof motor with internal on/off switch
(NEMA CLASS 1, DIV.1, GROUP D & CLASS 11, GROUP E, F & G)
Tornado units are approved and certified by American Bureau of Shipping (ABS). Heavy gauge, rolled and welded steel housings. No casting to break or crack.
Rugged steel outlet adapter with welded guide vanes to eliminate rattling and insure a quality product for many years of trouble free service.
Polymer fan blades standard. Solid Aluminum fan blades are optional.
Motors are rated for 115v or 230v single phase and 50/60 hertz. Higher voltages and 3-phase motors also available.
Motor voltage easily changed from 115v to 230v by a single switch located on the rear of the motor housing.
All explosion proof units are assembled with explosion proof junction boxes, cords and explosion proof plugs.
All TEFC units are assembled with weatherproof junction boxes, cords and plugs.
Stainless steel bolts and powder coated housing for longer service life.
Available Accessories:
Dual Inlet Adapter
Tote Cart with Straps
SAC-N-GO Ducting (8”, 12” or 16” Diameter) (conductive - black and non-conductive - yellow) Air Mover Stand
