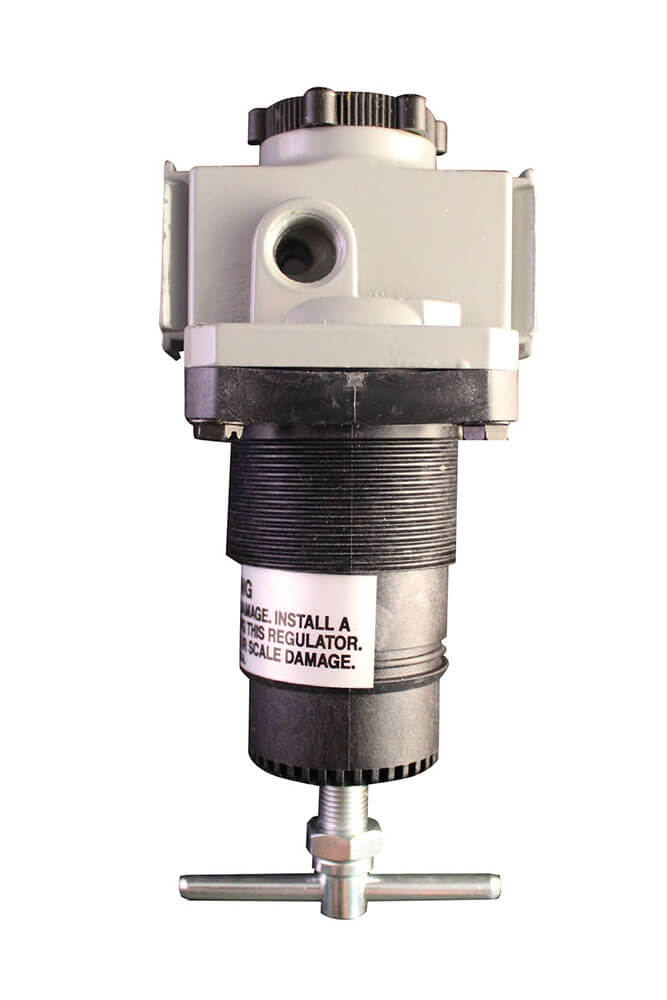

Milton 3/8″ Regulator , 2-125 PSI 1114



3/8″ Regulator , 2-125 PSI



3/8" NPT mid-size regulator is the relieving type which offers stable downstream air pressure over a wide range of air flows with accurate control, fast response and minimal pressure drop. Regulators should always be preceded by a filter to eliminate damage to the unit or inaccurate air flow. The aluminum die cast body comes with a balanced piston, molded rubber seat, Buna-N diaphragm and O rings. This regulator also has two offset 1/4" gage ports which can serve as two 1/4" supply lines. Offers a maximum inlet pressure of 250 PSI and 80 SCFM.


Additional information

Weight 2 lbs
Dimensions 6 × 3 × 3 in
